Neuroscientist and podcaster, Dr. Andrew Huberman , is really big on the importance of sunlight exposure. Getting enough sunlight, especially early in the morning, provides benefits to sleep, mood, focus and overall health.
In an interview with Dr. Peter Attia, Huberman said it would be great if there was an invention to let the user know when they have achieved enough sunlight during the day. Furthermore, it should notify them if they are looking at too much light at night as nighttime light exposure has been linked to increased likelihood of psychiatric disorders .
I thought this was a cool idea, so I built a prototype to accomplish this.
Building the PCB
For reading the LUX, I used the VEML7700 ambient light sensor. At first, I was planning on using a plain photoresistor. However, after 1k LUX, the change in resistance of a photoresistor would be so small that you would need a lot of amplification just to get it to work. So let’s not re-invent the wheel and just use an out of the box solution.

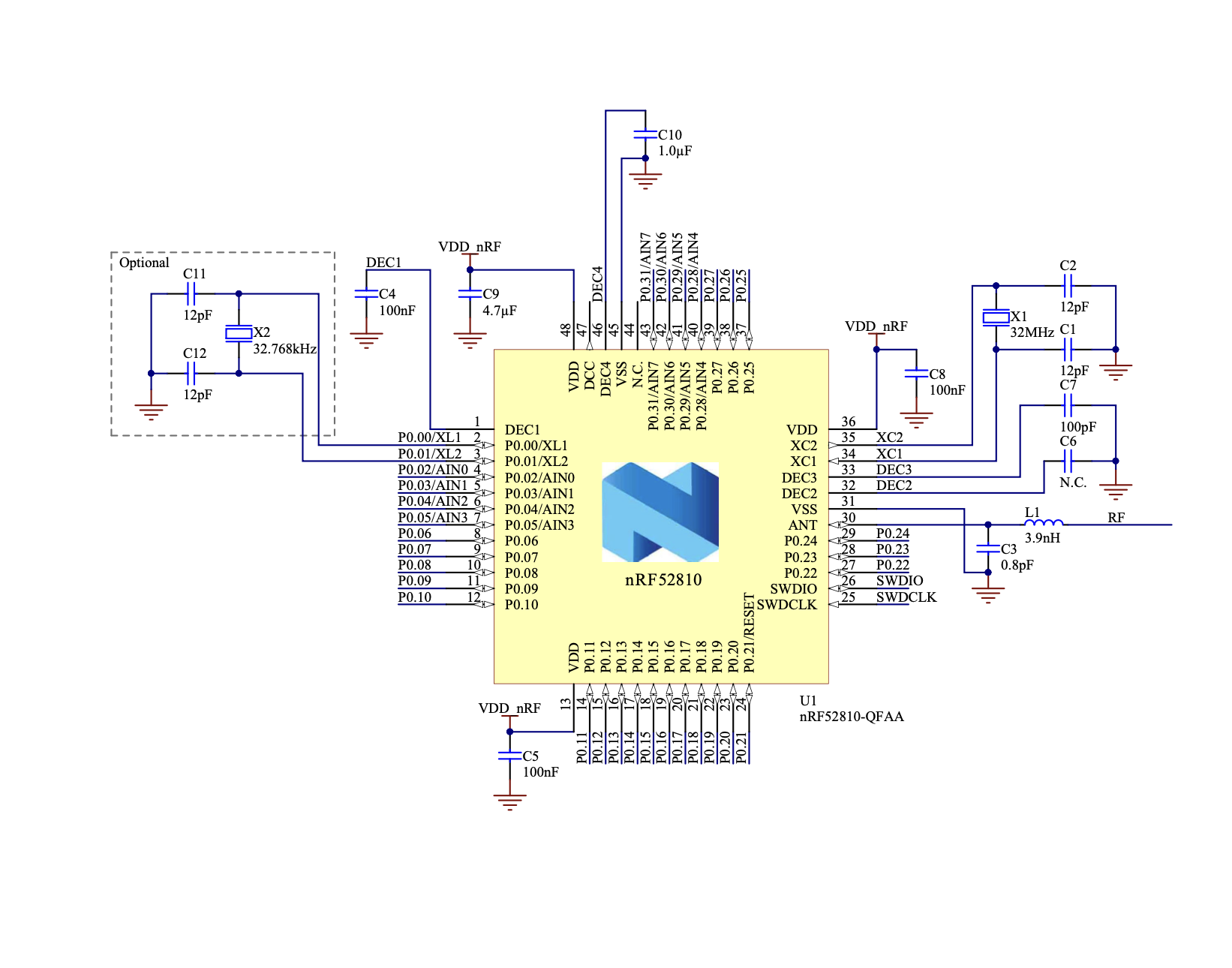

Nothing fancy for the circuit design itself. I just followed the reference schematic as defined in the NRF52810 datasheet.

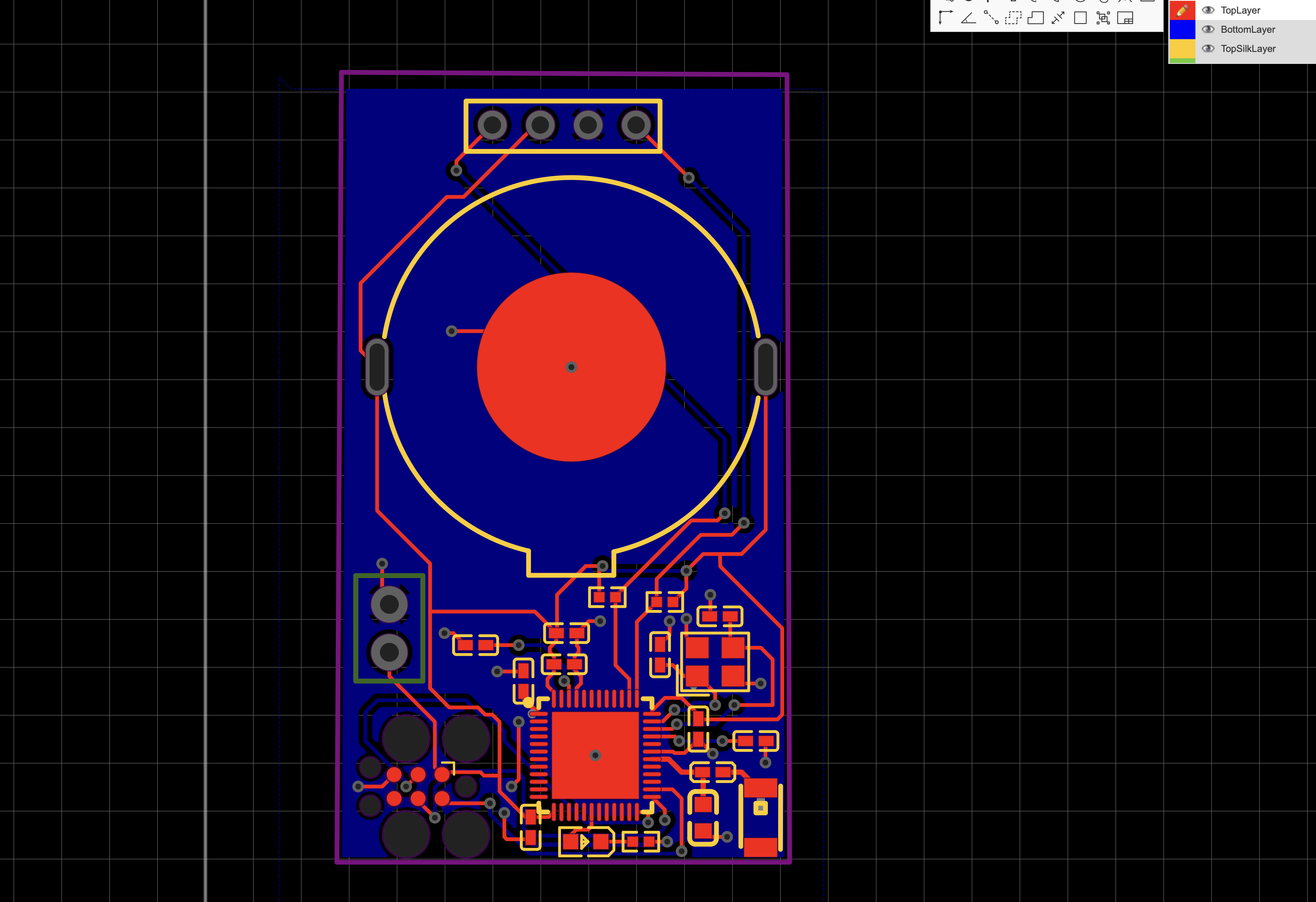

I used EasyEDA and JLPCB for designing and ordering the PCB. It came out to around $35 for two fully assembled PCBs. Pretty cheap!

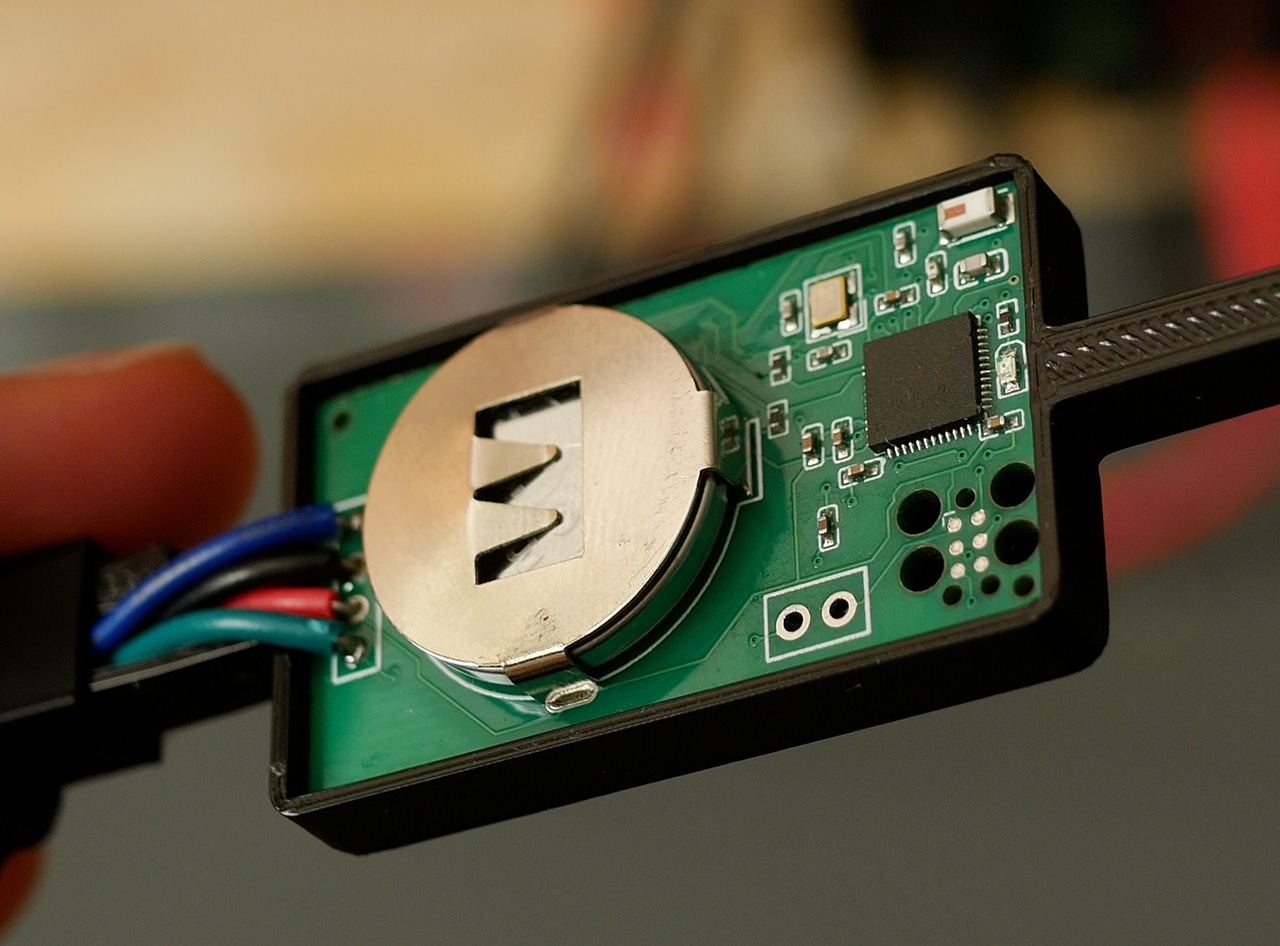

I also had to design a second board for the VEML7700 ambient light sensor. I think if this were to be turned into a real product, there would need to be a way to house the light sensor on the same board as the NRF52810 to cut down on assembly costs.
Firmware
When working with the latest line of Nordic MCUs, you will need to use Zephyr RTOS. Zephyr has a steep learning curve that I still don’t fully understand. However, I was able to get the sensor communicating very quickly thanks to the pre-written driven that was already available. Every second the MCU reads the LUX value from the sensor and broadcasts it to any connected device. Pretty straightforward.

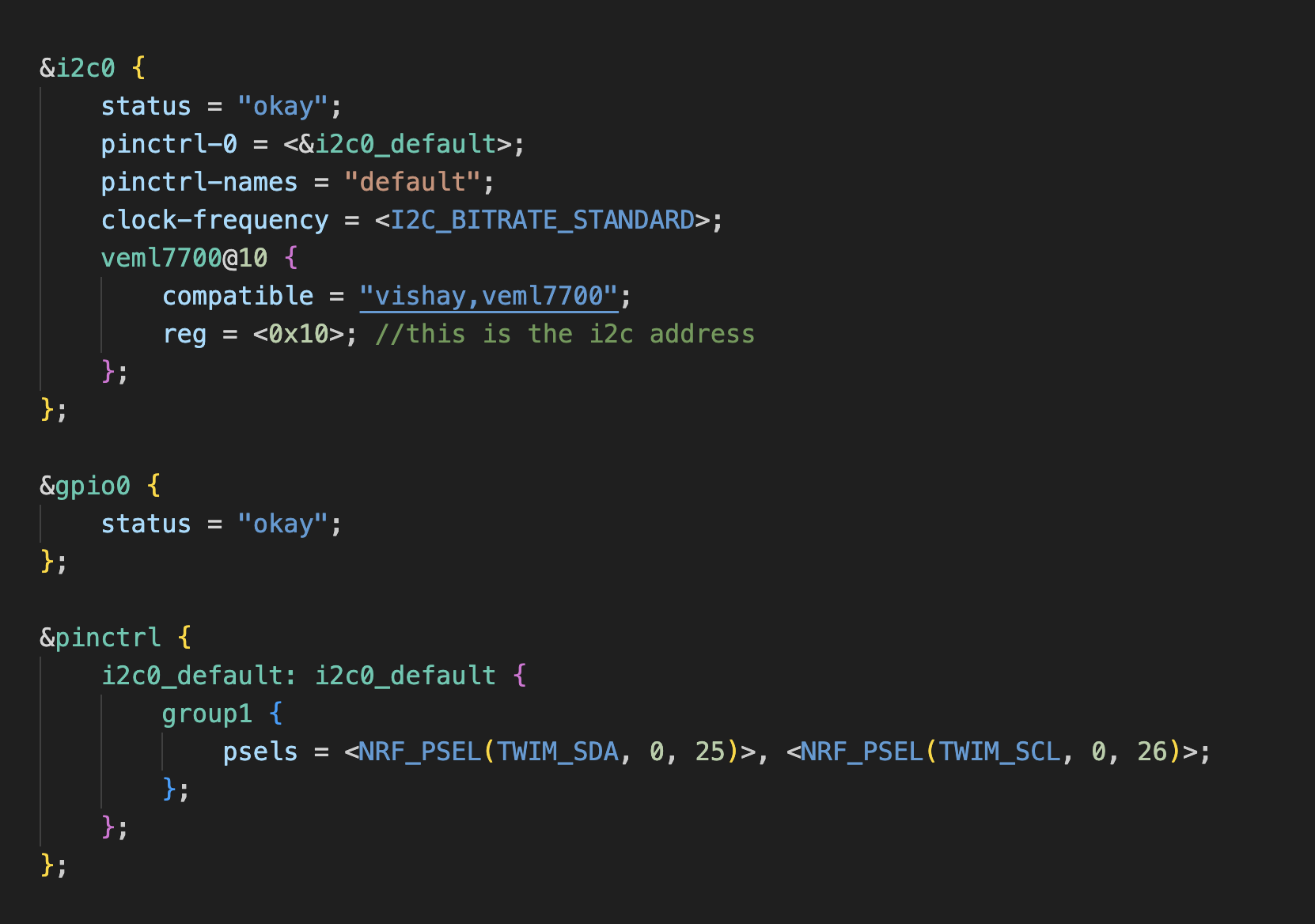

But device trees and overlays are still very confusing to deal with.
Bluetooth GATT

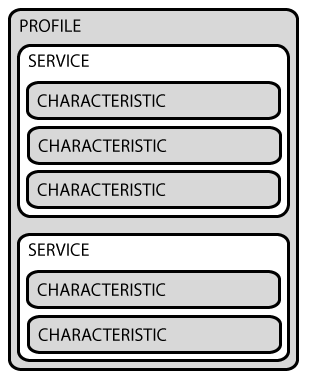

GATT stands for Generic ATTribute profile and defines the way two bluetooth low energy devices communicate with each other. The following graphic from Adafruit nicely visualizes the GATT service and characteristic hierarchy.
For more information on GATT, I encourage you to read the nice write up from Adafruit .
For this device, I am using the Environmental Sensing Service and the Perceived Brightness characteristic. This is important because when I build the app in the next step, I am going to specifically looking for that service and characteristic.

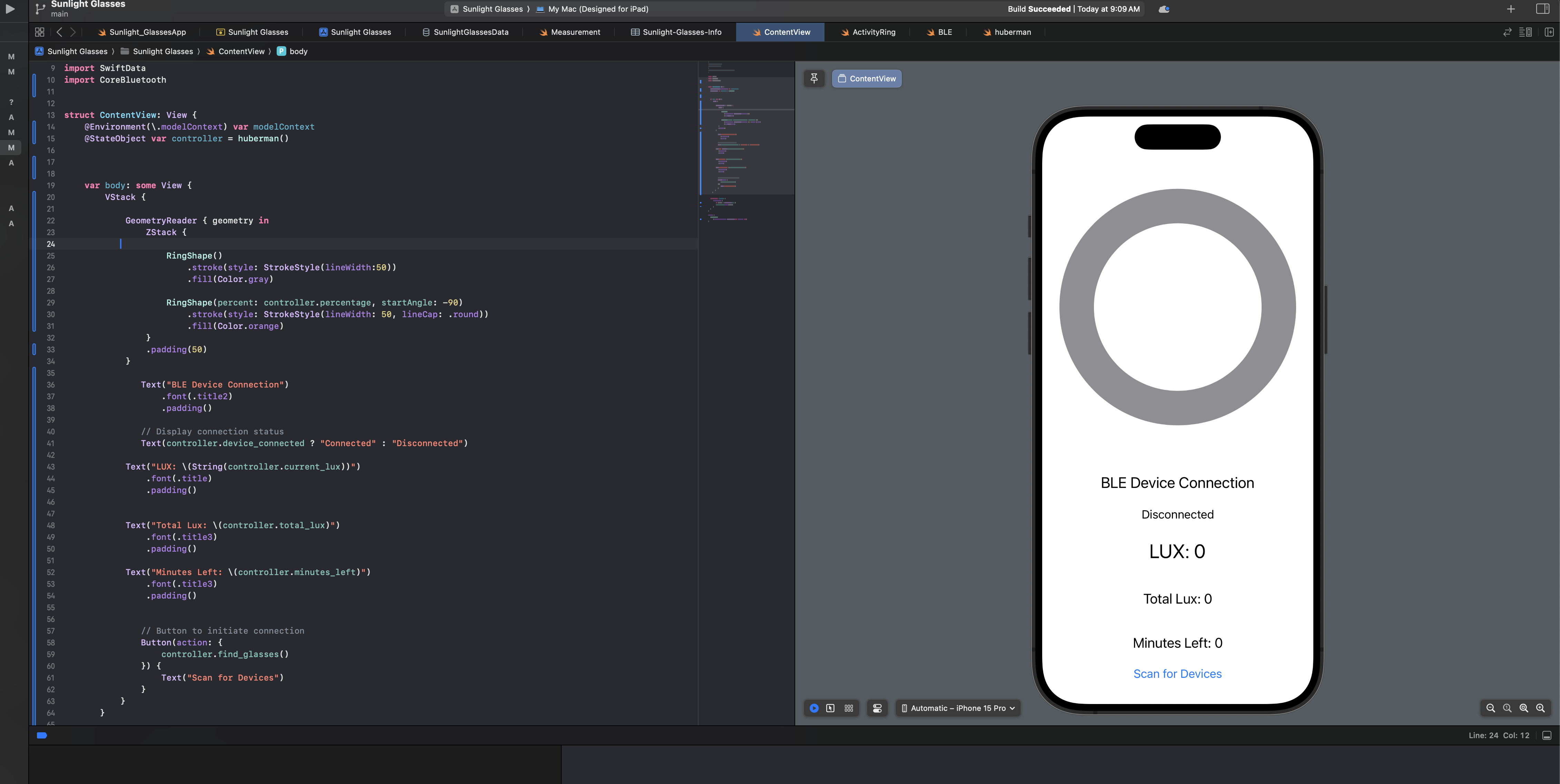

IOS App
This was might first time really diving into IOS development. After years doing Android development, I found IOS development to have some delights and annoyances. But I’ll save that for another post. The important thing is that I wanted the app to read the LUX value from the glasses and calculate the average LUX over one minute. The app should also keep track of total LUX and the amount of time it would take to get to 100K LUX given the current LUX value.
Dr. Huberman previously used 100K LUX as the ideal value to get to. So suppose you got outside on a cloudy day. Perhaps you are only getting 20K LUX of light. If you stand there for 5 minutes, you would have received an accumulative value of 100K LUX of light exposure.

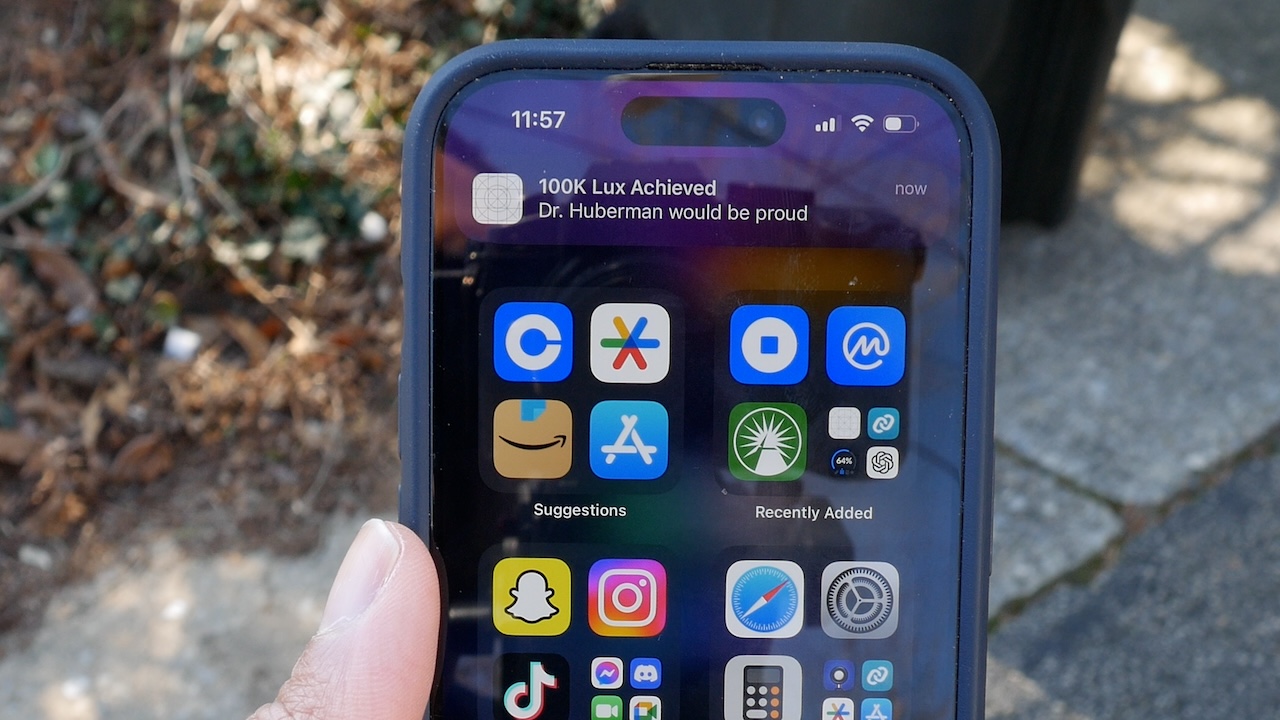

Once you get to 100K Lux, you will receive a notification

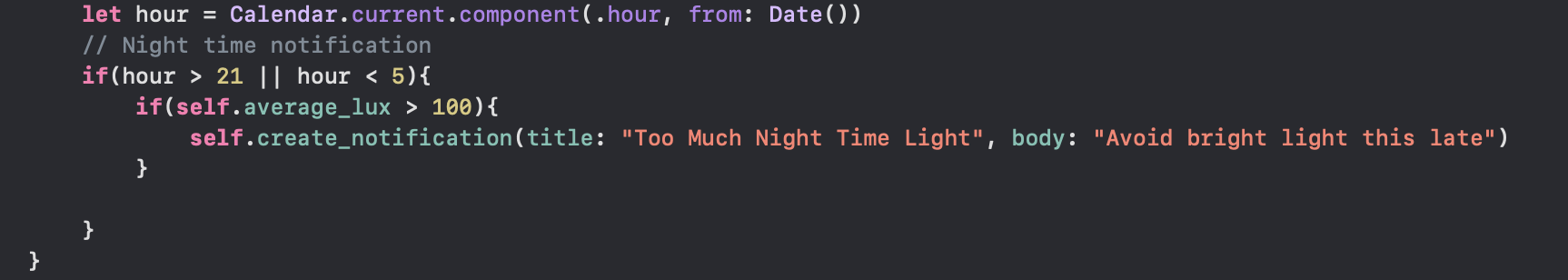

I also implemented a night time mode. So if you are getting too much light at night, then you will also receive a notification warning you about it.
3D Printing

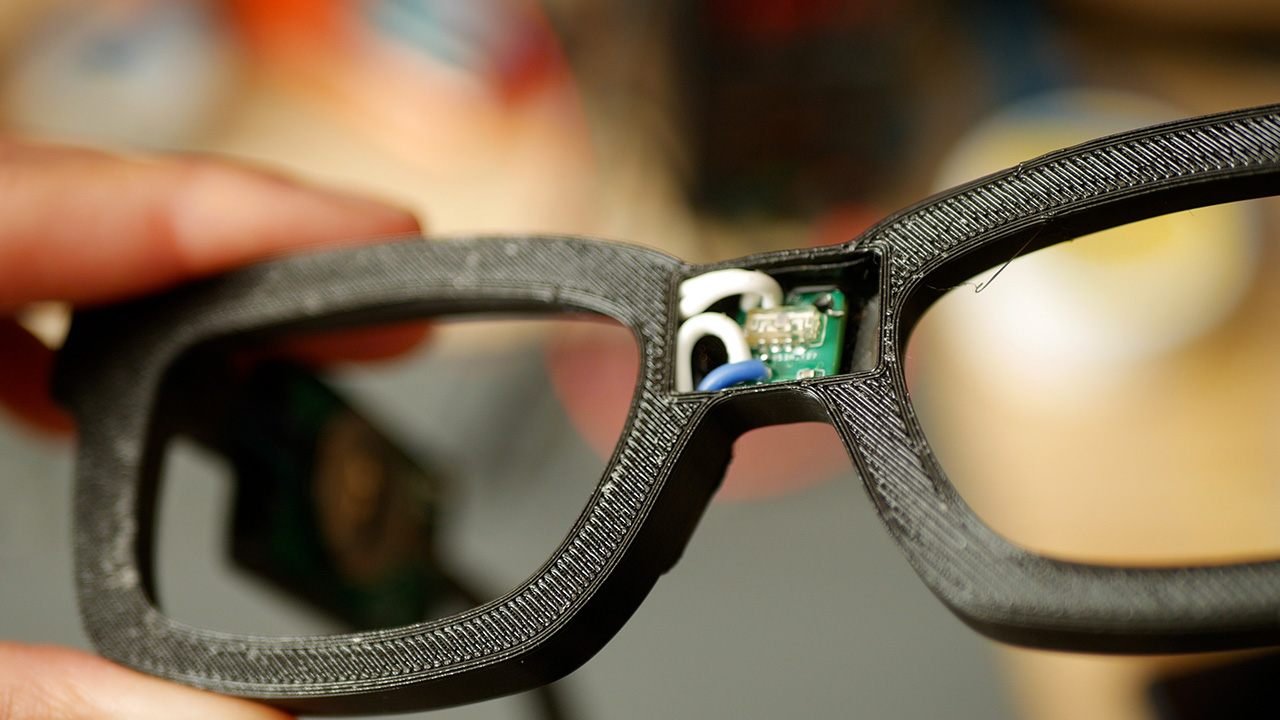

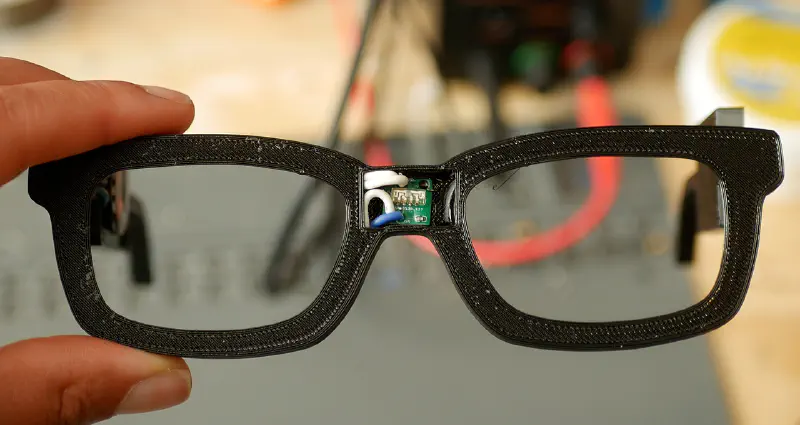

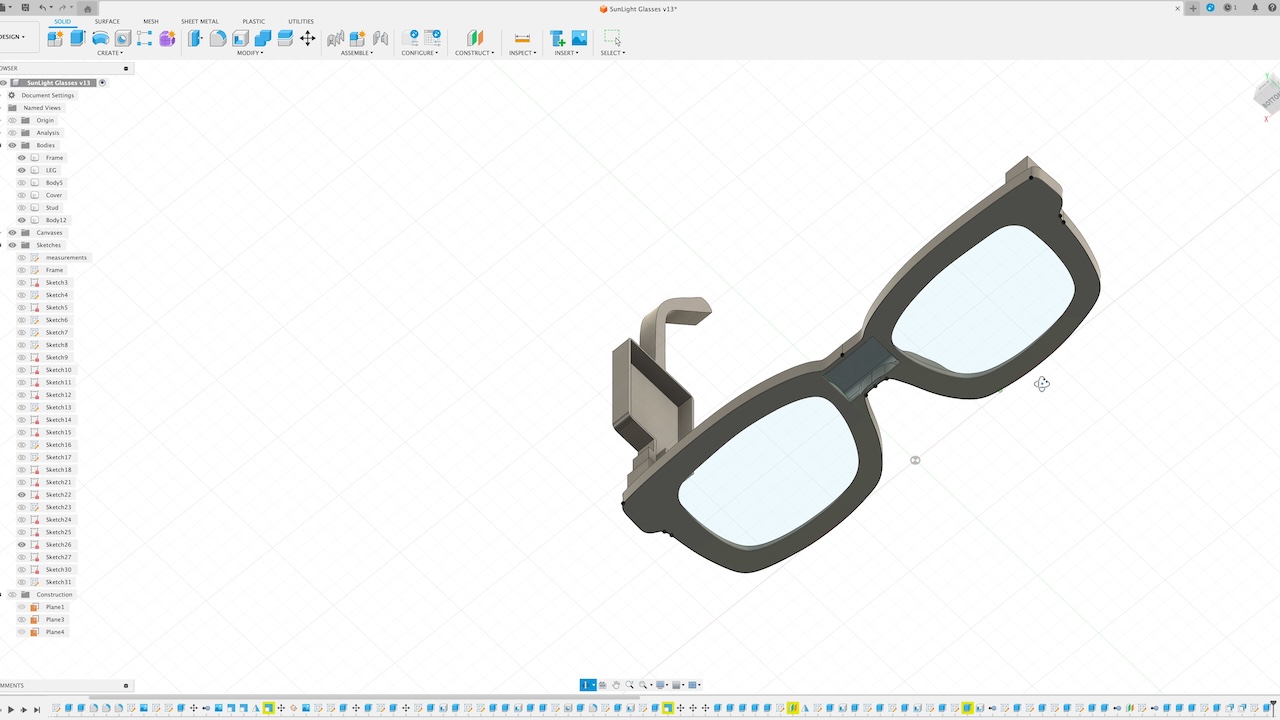

For creating the glasses frame, I used Fusion360 and started out tracing a sketch of regular 2D glasses. From there, I just made adjustments until I got a design I wanted. I printed the glasses using PLA material on my Ender 3 Pro.
Using the Glasses in Real Life
What I love
As someone who loves data, it is really cool to seem how much light I’m getting at any given moment. I also now understand why Dr. Huberman emphasizes looking up at the direction of the sun when you go outside. The amount of LUX that you receive from looking up at the sky compared to looking somewhere off in the distance can be a dramatic difference!
I also think that the night time functionality is really useful. I’m always up late doing stuff on the computer, so something that can actively tell me the amount of light my eyes are getting and whether its too much for this time of night is pretty neat.
Why I would not buy this
Despite the things that I love about this device, I probably would not buy it in its current form. I think the problem is that it does not take a long to get the daily 100K light exposure. So as a stand alone device, these don’t have a lot of value. Would I put on these glasses every time I leave the house, just to wear them for 5-10 minutes? Combined with my phone, and watch, this would be yet another thing that I would have to remember. This would make sense if it was a feature as part of another project like Google Glasses, Apple Vision Pro or those Rayband glasses.
Why not just use the Apple Watch
While I was developing this, I kept thinking to myself. You know, the Apple Watch has an ambient light sensor. I always have it on me. Couldn’t I just create an app that for the watch? Two problems with this.
- The watch is not positioned at the level of my eyes. Therefore, the watch could be covered by my sleeve or just in a position away from the sun.
- Apple does not allow access to the raw sensor data outside of research purposes. And even for that you would need to get direct approval from Apple for 🙄
Links
Check out the gadget in action: https://www.youtube.com/watch?v=xIHv9QHtEUs
Source Code and Hardware Files: https://github.com/DaveBben/sunlight-glasses
Link to Huberman interview talking about Sunlight: https://www.youtube.com/watch?v=eU7VneEQayM&t=1283s
